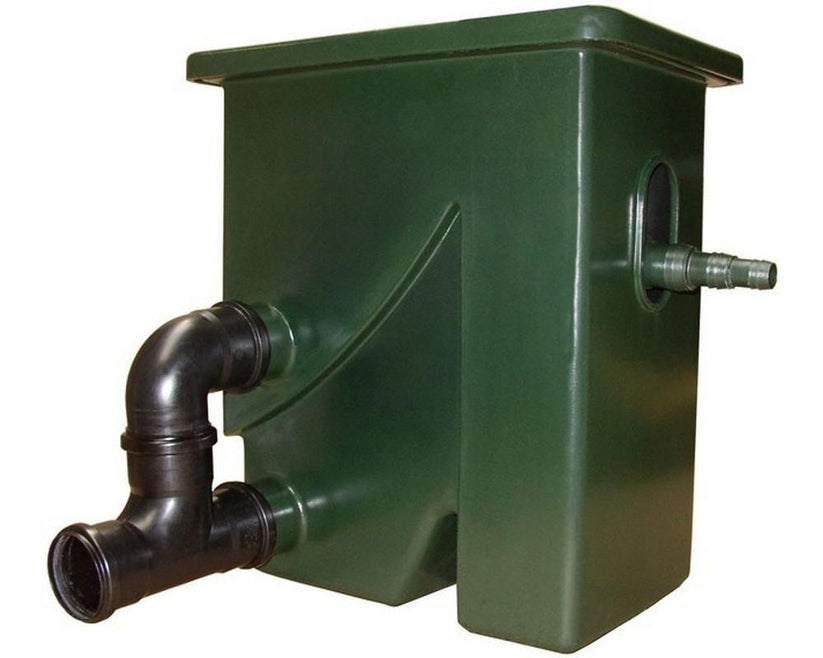

COMPACT SIEVE 2 (PUMP FED ONLY) GREEN OR BLUE

Compact version of the UltraSieve for use only in a pump fed configuration.

The Stainless Steel filter element has a width of 24 cm and a length of 40

cm with 300 micron openings. Maximum flow rate is approximately 15 m³/h.

Pump inlet: 25/32/40mm hose tail. Housing: dark-green or blue granite

coloured PE. Shipped with cover. Output and overflow: 75mm push fittings.

Very easy to use: a dirty water pond pump is connected directly to the

CompactSieve input. The water flows through the sieve which removes all

particle matter down to a size of 300 micron. The CompactSieve must always

be installed above pond level. Now available in dark green and granite blue.

Applications:

- As a particle remover directly next to the pond or to a waterfall/stream

return to pond (A).

- As a mechanical particle waste pre-filter before surface mounted

biological stages (B).

- As a mechanical pre-filter for existing trickle filter systems (C).

- The unit can be connected to a pond vacuum cleaner and the returned water from the

vacuum cleaner can be fed into the input hose tail via a T-piece or directly. For extra particle

removal and saving your precious matured pond water (D)

- The unit can be connected to an existing pumped pond skimmer system. The unit must be

mounted above pond water level (E)
